| INCLUDED: - The STL-19P triangulation LiDAR
- USB adapter board
- Serial test cable
STL-19P LiDAR: - FOV: 2D 360°
- Range: 0.1 – 8m
| |
| INCLUDED: - The LD-14P triangulation LiDAR
- USB adapter board
- Serial test cable
LD-14P LiDAR - FOV: 2D 360°
- Range: 0.1 – 8m
| |
| Direct time of flight (DTOF) LiDAR. DTOF has good anti-interference, stability, and response speed. Great for navigation, map building, and obstacle avoidance. - 360° FOV
- 25m range.
- Brushless motor.
| |
| Direct time of flight (DTOF) LiDAR. DTOF has good anti-interference, stability, and response speed. Great for navigation, map building, and obstacle avoidance. - 2D LiDAR
- 360° FOV
- 12m range
- Brushless motor
*This LiDAR outputs on a TTL connector. A converter board will be required for USB operation. Please see the D500 kit if USB will be required. | |
| Single point measurement LiDAR. Direct time of flight (DTOF) measurement technology. Accurate measurement, fast response, and accurate distance measurement. - Measurement range up to 8m
- Ranging frequency: 4500Hz
| |
| STU 22L is a miniature, ultra low power multi frequency ultrasonic time of flight (TOF) sensor. It is mainly used for carpet detection or similar short range applications. - 45° FOV
- 20-60mm measuring range
- Small size: 15 * 12 * 10mm
| |
| The LD14p LiDAR ranging core uses triangulation technology, which can measure 2,300 times per second. Outputs on a TTL connector. - FOV: 360°
- 8m range
- ±10mm ranging accuracy
| |
| LIPSedge™ M3 LED is an innovative 3D Modular Camera targeting embedded systems and has built-in IMU that allows for interactive applications. - Dimensions – 51 x 28 x 22.4mm
- Depth Resolution – 80×60 @ 30fps
- FOV – 74.1°x57.5°x92°
- Range – 0.2m~4m
- Illumination – LED, 850nm
| |
| LIPSedge™ S205p 3D stereo depth camera integrates an Ambarella CV2 CVflow® SoC with high performance edge AI processing capabilities. - Depth FoV (H x V x D): 87° x 58° x 95°
- Depth Resolution: 1280 x 720 @30fps
- Dimensions: 130mm x 66mm x 32mm
- Power: PoE (IEEE 802.3 at/af)
- Multiple Frameworks supported: Open NI, NVIDIA Isaac, ROS
| |
| LIPSedge AE470D Stereo Camera is a ruggedized 3D camera with GigE/PoE, IP67 rating, and built-in AI Processor, IMU & heatsink for industrial use and factory automation. - Depth FoV (H x V x D): 87° x 58° x 95°
- Depth Resolution: 1280 x 720 @30fps
- IP67 rated
- Dimensions: 135mm x 100mm x 42mm
- Power: PoE (IEEE 802.3 at/af) / Power wire (DC 12v, 2A)
- Multiple Frameworks supported: Open NI, NVIDIA Isaac, ROS
| |
| LIPSedge AE430D Stereo Camera is a ruggedized 3D camera with GigE/PoE, IP67 rating, and built-in AI processing, IMU, and heatsink for industrial use and factory automation. - Depth FoV (H x V x D): 65° x 40° x 72°
- Depth Resolution: 1280 x 720 @30fps, 640 x 480 @60fps
- IP67 rated
- Dimensions: 135mm x 100mm x 42mm
- AI Processor: A311D
- Power: PoE (IEEE 802.3 at/af) / Power wire (DC 12v, 2A)
- Multiple Frameworks supported: Open NI, NVIDIA Isaac, ROS
| |
| LIPSedge™ L Series is the most compact 3D structured light camera on the market today with big features. - Range: 0.4m – 1.2m
- Depth FoV: 50.7° x 74.2° (± 2°)
- RGB & Depth Resolution: 1280 x 800 @ 6fps
| |
| LIPSedge AE400 3D Stereo Camera is a ruggedized 3D camera with GigE/PoE, IP67 rating, and built-in IMU & heatsink for industrial use and factory automation. - Depth FoV: 65°(H) x 40°(V)
- Depth Resolution: 1280 x 720 @30fps, 640 x 480 @60fps
- IP67 rated
- Dimensions: 135mm x 100mm x 42mm
- Power: PoE (IEEE 802.3AT) / Power wire (DC 12v, 2A)
- Multiple Frameworks supported: Open NI, NVIDIA Isaac, ROS
| |
| 2D LiDAR with 360° FOV. 50m range. - 2D LiDAR.
- 360° FOV.
- 50m effective range.
- Horiz resolution: 0.06@10Hz, 0.09@15Hz, 0.12@20Hz, 0.15@25Hz.
- 2D pointcloud.
| |

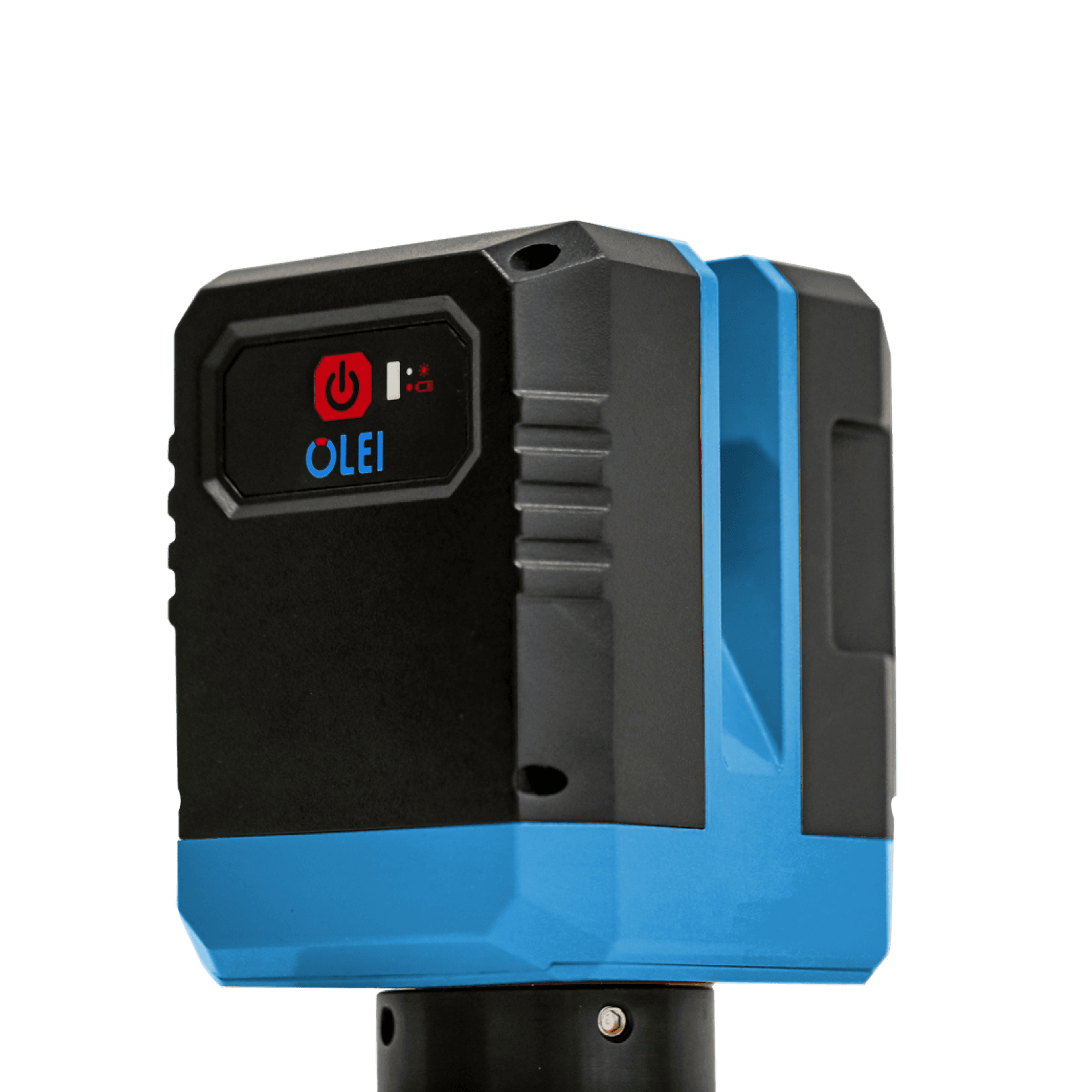

| Tripod mounted 3D Mapper - Ranging range 25m
- Accuracy 1-2cm
- Scanning angle: 360° x 270°
- Scanning speed: 70khz
- Battery life: >4h
| |

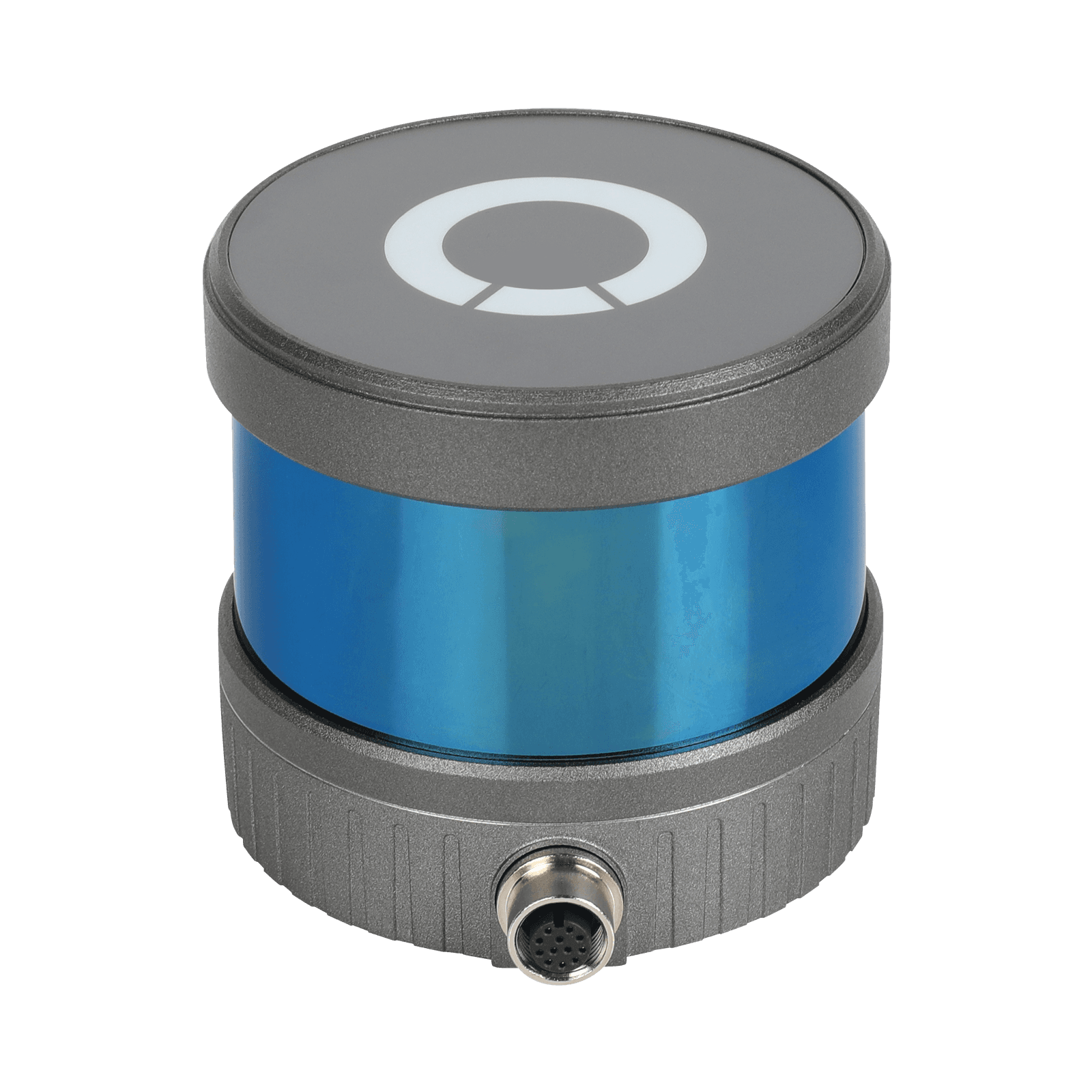

| 3D 360° 16 channel LiDAR. - 3D LiDAR.
- Horizontal FOV: 360° .
- Vertical FOV: -15° ~ 15°
- Up to 100m detection.
- Accuracy: Horizontal: 0.18°±10%@10Hz. Vertical: 2° ±0.1°.
- 3D pointcloud.
| |
| 2D LiDAR for high accuracy applications. ±10mm between 0.2 and 2m. This LiDAR is special order. - 2D LiDAR.
- 270° FOV
- 5m effective range.
- High repeat accuracy: ±10mm between 0.2 and 2m. 0.225 horiz resolution.
- 0.225 horizontal resolution
- 2D pointcloud
| |

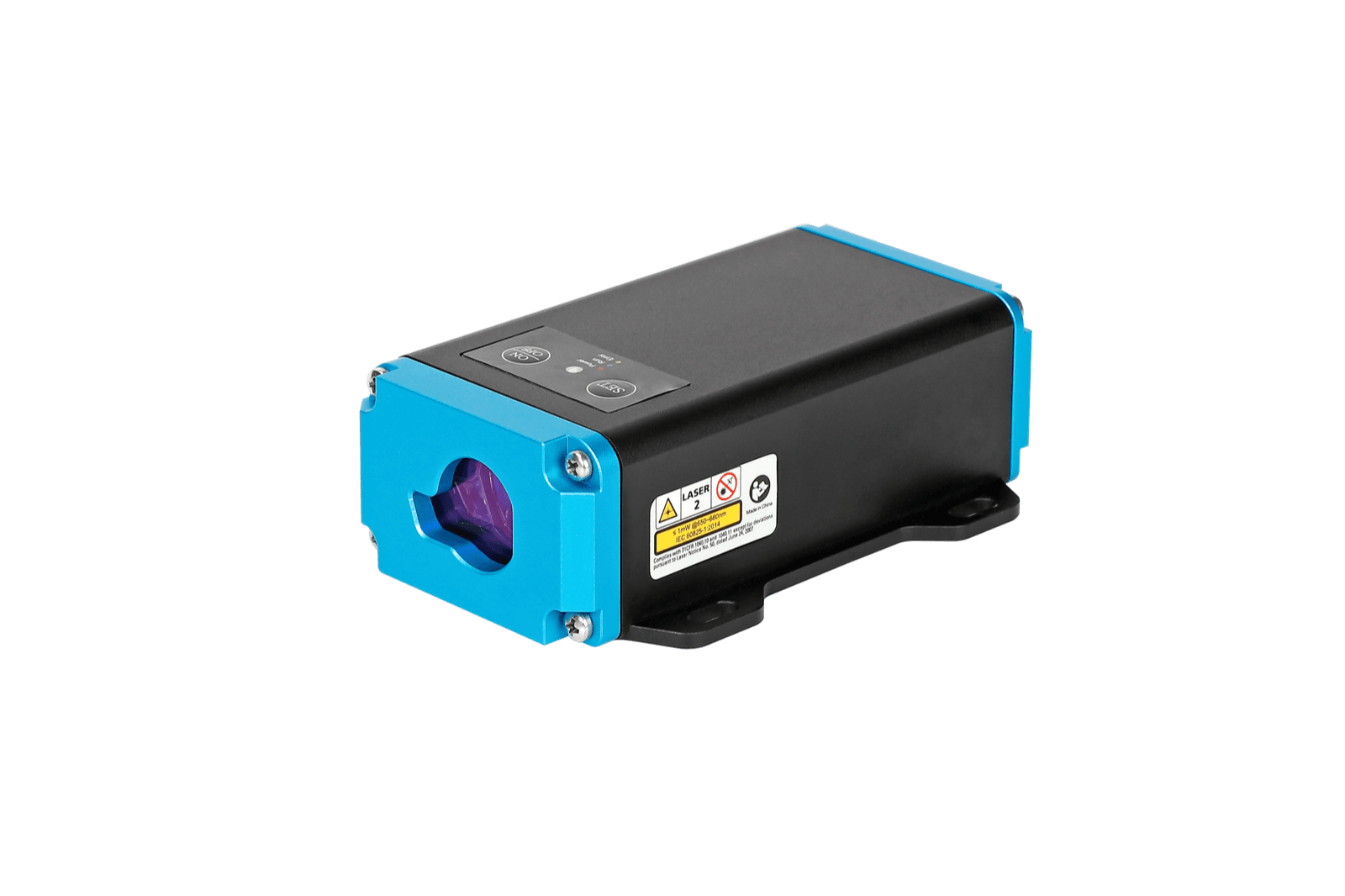

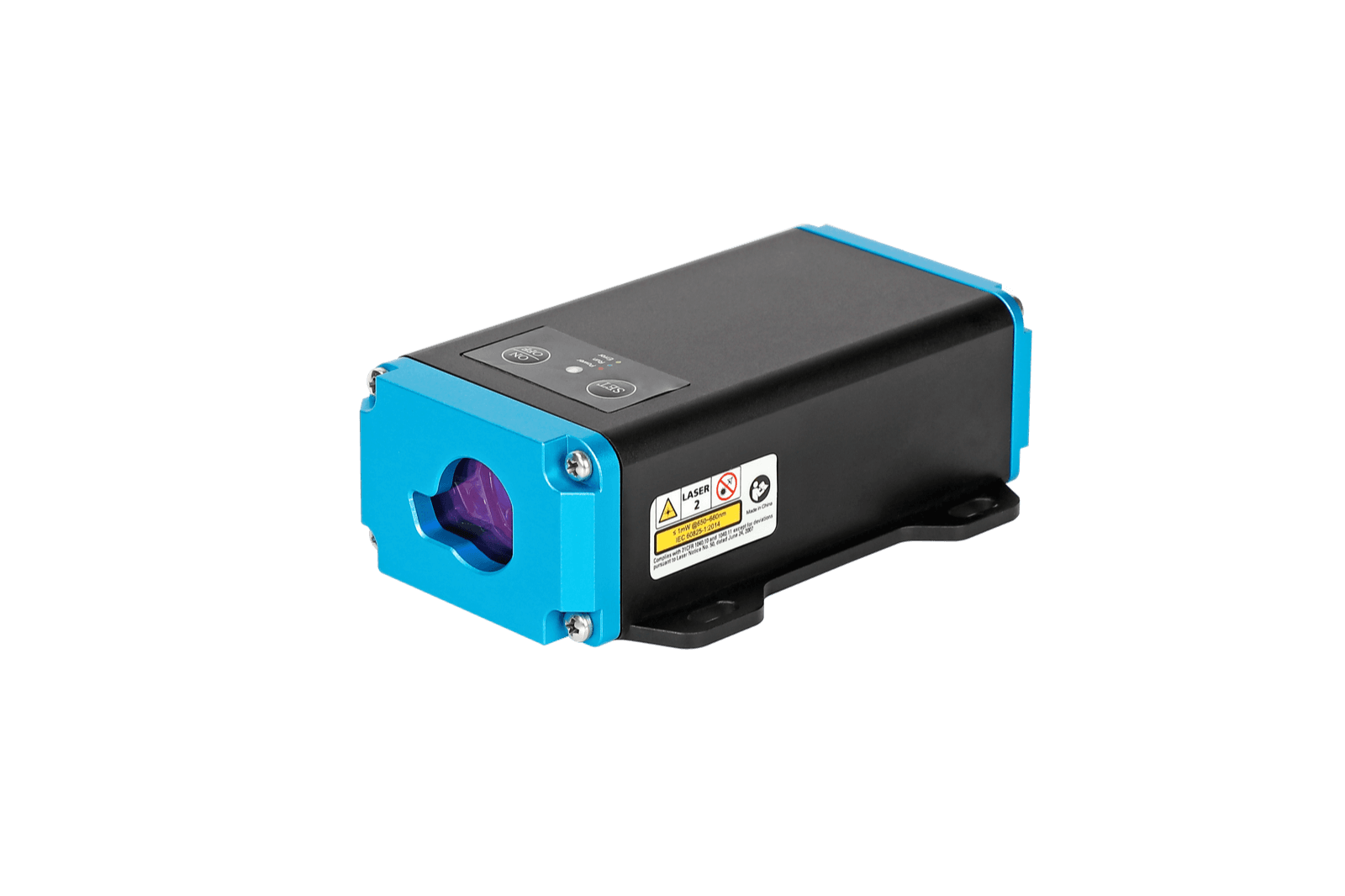

| Laser Distance Finder. - Up to 90m at 0.1mm resolution.
- Accuracy: ±1.5mm <20m, ±3.0mm (full range).
| |

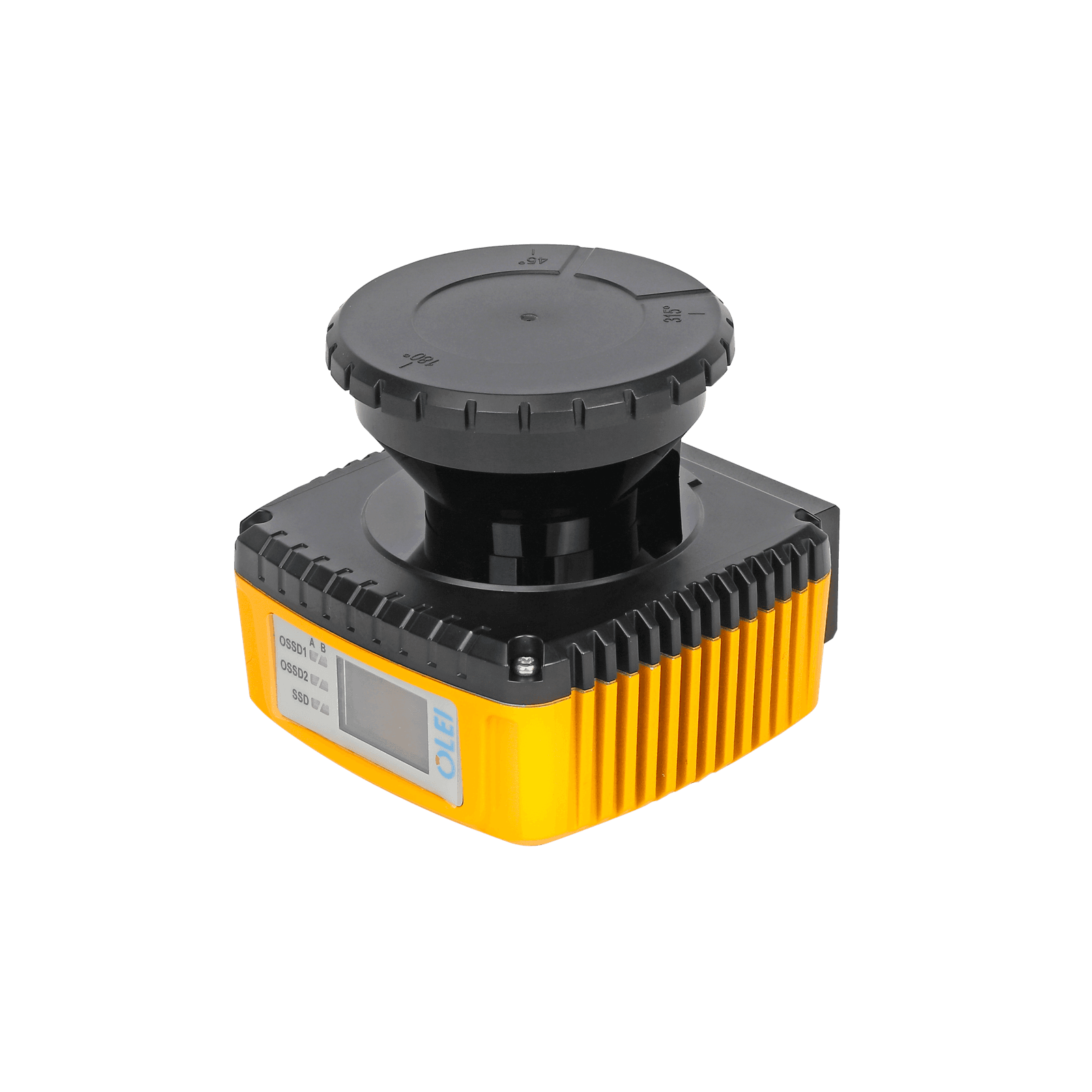

| Safety LiDAR with SIL2 level IEC61508/IEC62061. - 270° scanning angle.
- Up to 20m range.
- 2D pointcloud.
| |

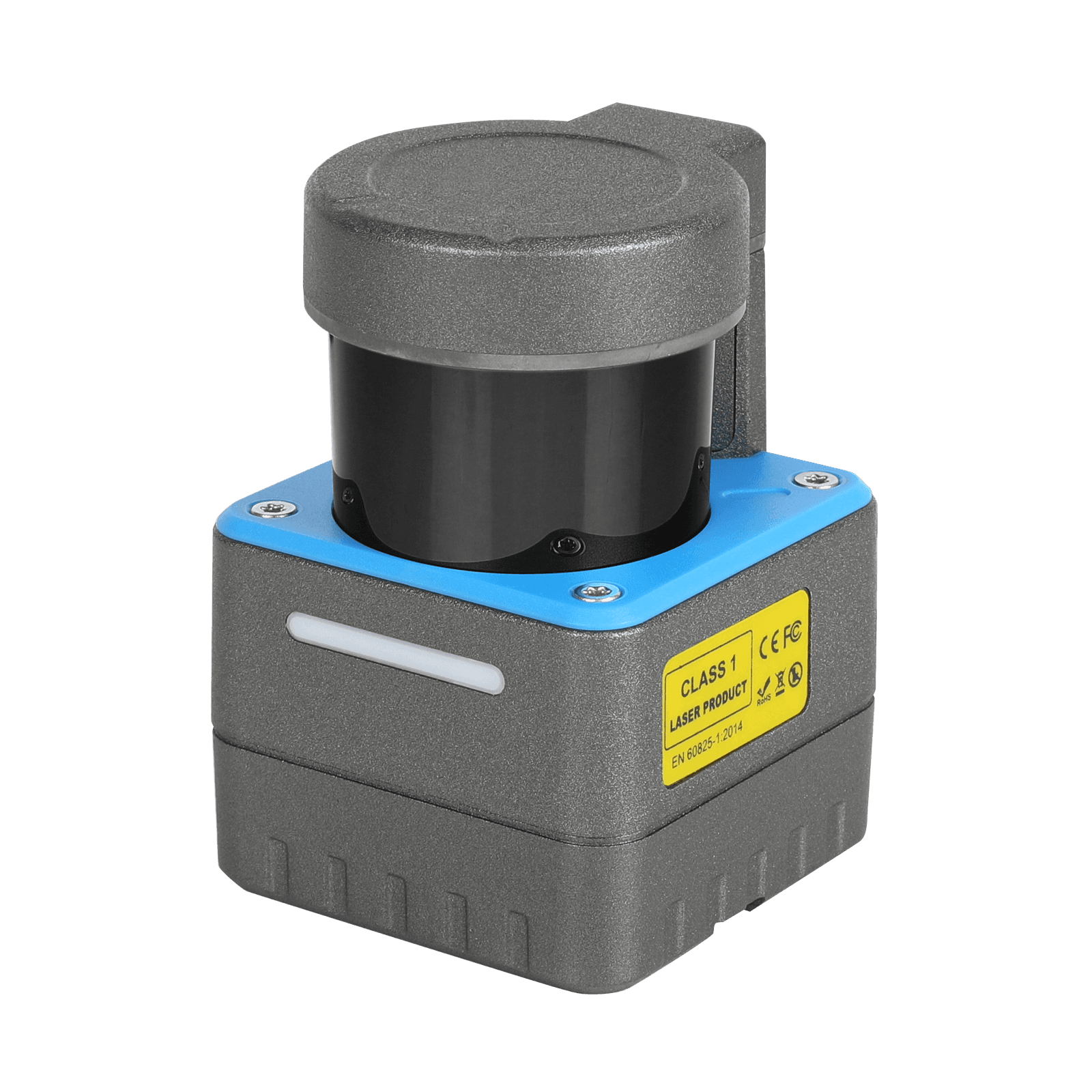

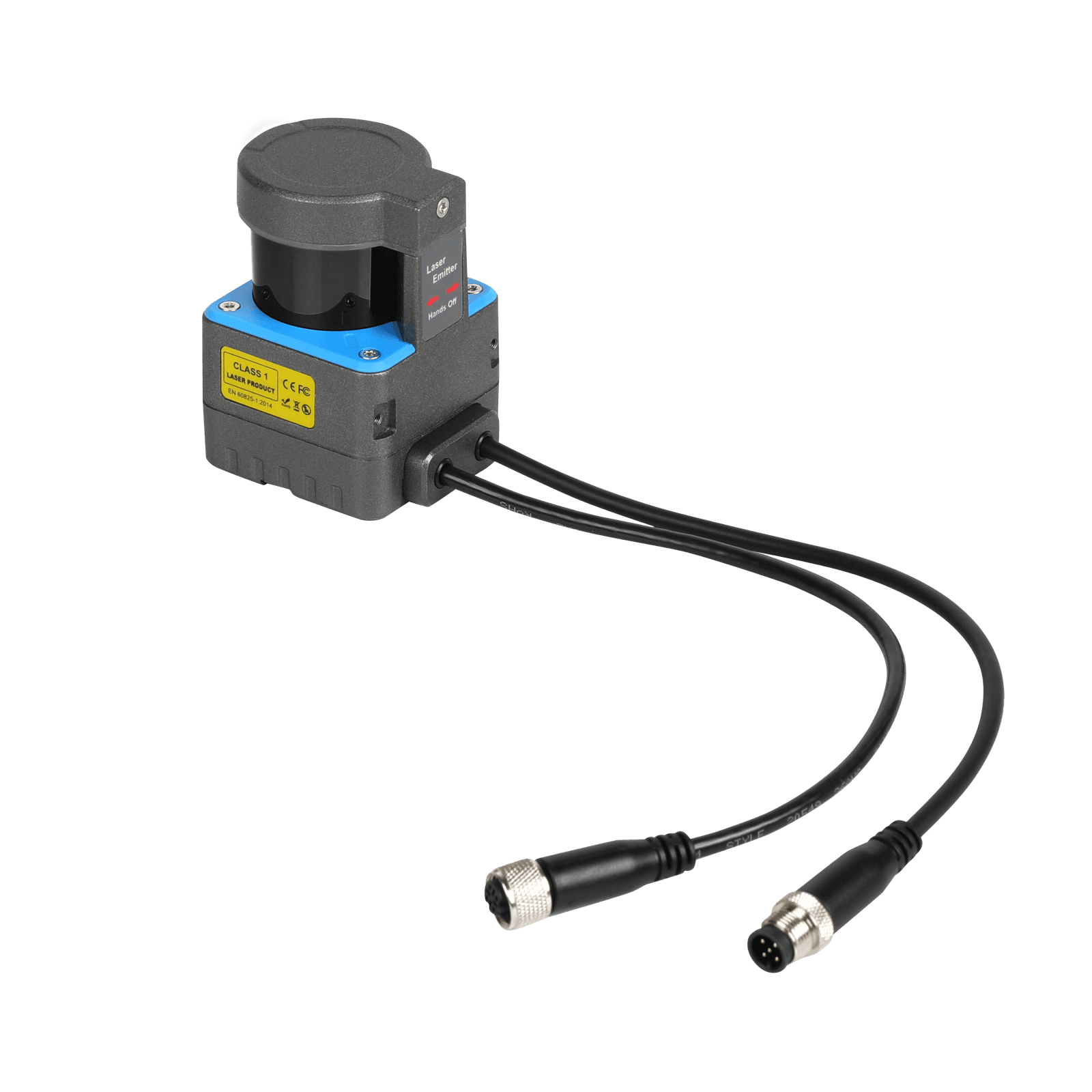

| 2D zone LiDAR with 270° FOV. - 2D zone LiDAR
- 270° FOV.
- 10m effective range.
- 0.225 resolution.
- 2D pointcloud.
- Available with analog zone alarm output.
| |
