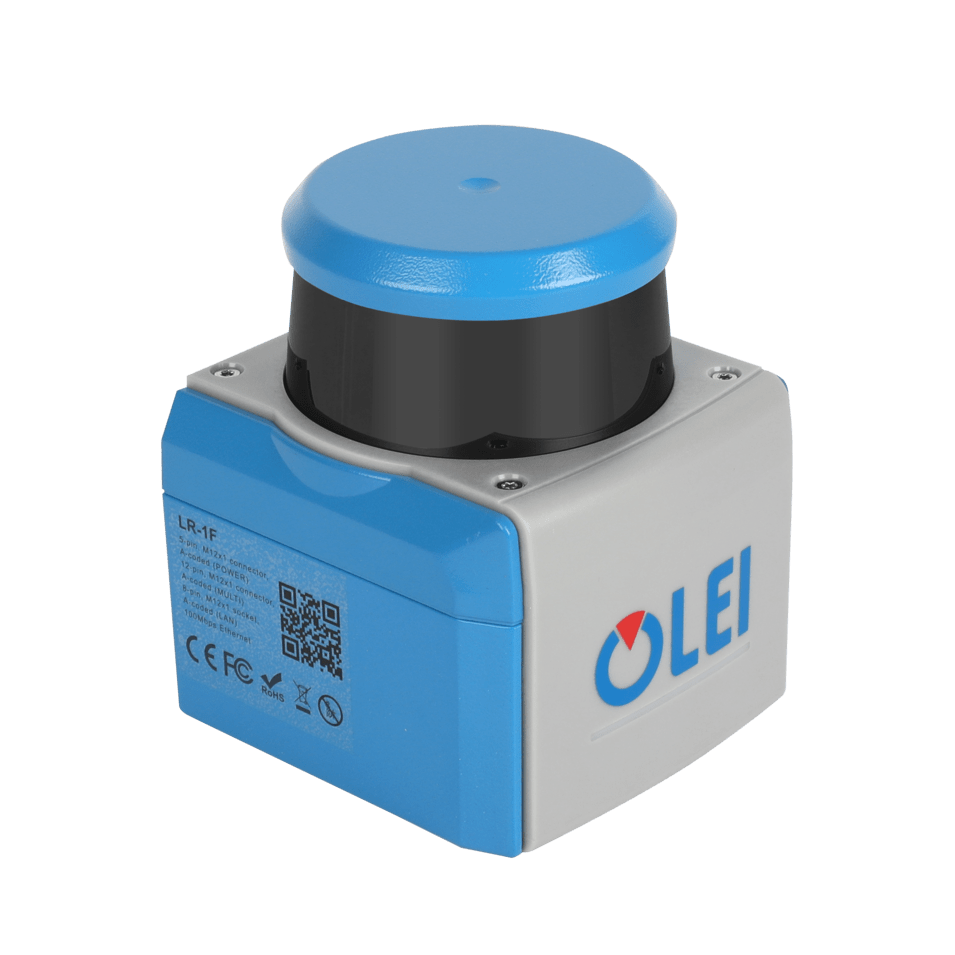

OLEI 360° 2D LR-1F LiDAR

$1,484.00

    For a large order custom quote, please email us via the contact page.

    Obstacle avoidance and Navigation LiDAR with excellent performance.

    Suitable for obstacle avoidance and safety area protection, with detection capability up to 50m.

    360° full-angle scanning, up to 50m (80% reflectivity).

    Compatible with reflector navigation and natural navigation.

    Up to 0.06° angular resolution, ±0.001° angular accuracy, ensuring precise positioning.

    Connectors on the BACK.

    Certification: FCC, EMC, CE, RoHS, REACH, FDA Protection level: IP66.

    SKU: LR-1F Categories: ,

    Description

    • LiDAR from OLEI, the world’s largest Laser Device manufacturer and trusted OEM partner for brands like Bosch, Trimble and Leica.
    • Obstacle avoidance and Navigation LiDAR with excellent performance, and safety area protection.

    SPECIFICATIONS:

    • Laser: 905 nm, class 1
    • Channel: 1
    • Field of view: 360°
    • Scanning Frequency: 1-~25 Hz
    • Angular Resolution: [email protected], [email protected], [email protected], [email protected]
    • Measurement Range: [email protected]% reflectivity [email protected]% reflectivity [email protected]% reflectivity [email protected]
    • Scanning rate: 60K pts
    • Distance Resolution: 1mm
    • Accuracy: Absolute Accuracy:<±20mm Reflector:
      Absolute Accuracy:<±40mm Repeate accuracy:<20mm
    • Ethernet Connection: 100Mbps
    • Dimension: 95 mm x 97 mm x 116 mm
    • Operation Voltage: 12·32 VDC
    • Weight: <900g
    • Degree of Protection: IP66
    • Operation Temperature: -10°C ~ 50°C
    • Storage Temperature: -30°C ~ 70°C
    • Air Humidity: <95% RH
    • Vibration Resistance: IEC 60068-2-6:2007
    • Shock Resistance: IEC 60068-2-27:2008

    Additional information

    Weight 0.90 kg
    Dimensions 97 × 95 × 116 cm
