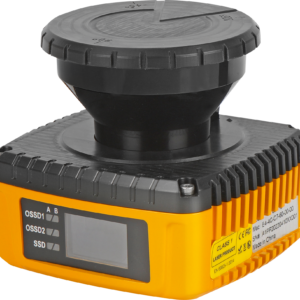

OLEI 2D LR-1BS5 Mini LiDAR

$750.00

LR-1BS can satisfy the vast majority needs of mobile robots (AMR) and automatic guided vehicles (AGV) for safe obstacle avoidance.

Switching output with point cloud data (Through PLC or point cloud data)

270°scanning angle, up to 25m effective detection distance (80% reflectivity white board).

Main connectors on the BACK. Power and LAN on the unit.

Certification: FCC, EMC, CE, RoHS, REACH, FDA Protection level: IP66.

    For a large order custom quote, please email us via the contact page.

    14 in stock (can be backordered)

    SKU: LR-1BS5 Category:

    Description

    • LiDAR from OLEI, the world’s largest Laser Device manufacturer and trusted OEM partner for brands like Bosch, Trimble and Leica.
    • Obstacle avoidance and Navigation LiDAR with excellent performance, and safety area protection.

    SPECIFICATIONS:

    • Laser: 905 nm, class 1
    • Channel: 1
    • Scanning Angle: 270°
    • Scanning Frequency: 10~25 Hz
    • Angular Resolution: 0.225°
    • Measurement Range: 0.1~2m@2% reflectivity; 0.1~8m@10% reflectivity; 0.1~15m@ 80 reflectivity
    • Response Time: 130ms@10Hz
    • Distance Resolution: 1mm
    • Accuracy: Systematic error < +/- 20 mm
    • Ethernet Connection: 100Mbps
    • Dimension: 60 mm x 60 mm x 85 mm
    • Operation Voltage: 12·32 VDC
    • Weight: 320g
    • Degree of Protection: IP66
    • Operation Temperature: -10°C ~ +50°C
    • Storage Temperature: -30°C ~ +70°C
    • Air Humidity: <95% RH
    • Vibration Resistance: IEC 60068-2-6:2007
    • Shock Resistance: IEC 60068-2-27:2008

    Additional information

    Weight 0.45 kg
    Dimensions 60 × 60 × 85 cm

    Documentation

    DOCUMENTATION

    Support

    North America: Morpheus Tekwww.morpheustek.com/contact

    Europe: Netimwww.netim.com/en/contact-us

    Asia: Ole-Systems – http://ole-systems.com/index.php?catid=42
